BODY: Type: all-metal Volume: 6 m³ Internal dimensions (L x W x H): 4190 × 2205 × 670 mm Material: 4 mm steel floor, 3 mm steel sides Doors: two side doors and the rear door can be opened.

MAIN SPECIFICATIONS
Frame length behind cab: 4800 mm
Overall dimensions (L × W × H): 6790× 2400 × 2840 mm
Wheel formula: 4×2
(two-axle chassis, rear drive axle, 1 drive axle)
Wheelbase: 4200 mm
Tires: 9.00R22.5 18PR
Fuel tank: 200 l (diesel)
Fuel consumption: 17.1 l/100 km
Electrical equipment: 24V voltage, 28V alternator, 2 batteries

WEIGHT CHARACTERISTICS:
Curb weight: 6 500kg
Chassis payload capacity: 5 500 kg
Gross vehicle weight: 12,000 kg

ENGINE
Emission standard: Euro 3
Engine model: Yuchai YC4E160-33, 4-cylinder diesel engine, turbocharged with intercooler
Power: 160 hp
Torque: 580 N·m
Engine displacement: 4.257 l
Fuel system: fuel pump, fuel filter, coarse fuel filter

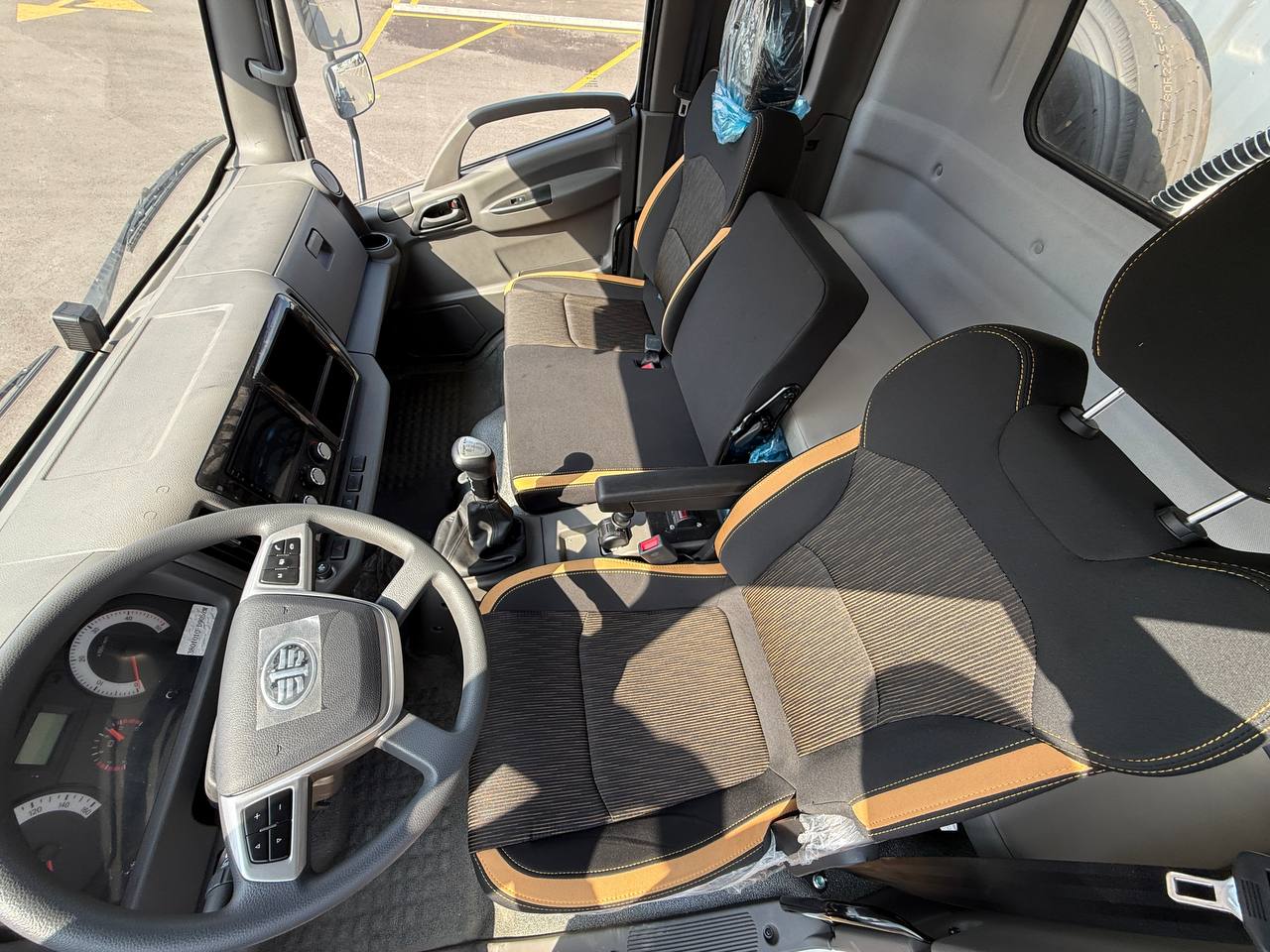

CAB
Single-row: 3 seats, 1 sleeper berth

Equipment:
pneumatic driver's seat, air conditioner, central locking, remote control, power windows, LCD monitor + 4 cameras, multifunction steering wheel.

TRANSMISSION:
Gearbox: Shaanxi 8SS75TE, manual
8-speed (8+2)

FRONT AXLE AND SUSPENSION
Front suspension: leaf spring suspension (10 leaves)
Rear drive axle and suspension: hypoid drive, leaf spring suspension (10+9 leaves)

Rear axle:
Model: Qingte 435

BRAKE SYSTEM
Brake system: pneumatic, ABS, engine brake, drum wheel brakes

Note: The supplier reserves the right to make changes resulting from technical progress.
